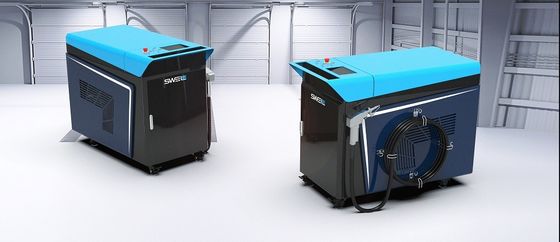

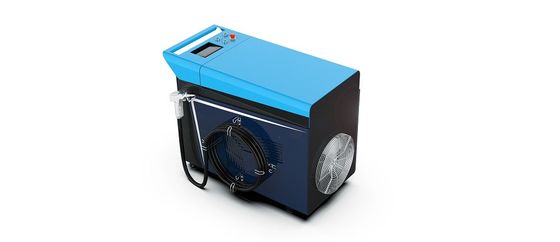

Water Cooling Fiber Laser Welding Machine Air Cooling Fiber Laser Welding System 1500W 2000W 3000W

WaterCooling Fiber Laser Welding Machine Air Cooling Fiber Laser Welding System 1500W/2000W/3000W

Product Description:

The handheld fiber laser welding machine is a new generation of laser welding equipment. It is a non-contact welding and does not require pressure during the operation. Its working principle is to directly irradiate a high-energy intensity laser beam onto the surface of the material, and through the interaction between the laser and the material , causing the material to melt internally, then cool and crystallize to form a weld. The handheld fiber laser welding machine fills the gap of handheld welding in the laser equipment industry and subverts the working mode of the traditional laser welding machine. The handheld fiber laser welding machine replaces the previous fixed optical path. It is flexible and convenient, and the welding distance is long. It also makes the outdoor operation of laser welding easier. It is mainly aimed at laser welding of long-distance and large workpieces to overcome the limitations of the workbench travel space. The heat-affected area during welding is small, which will not cause work deformation, blackening, or traces on the back, and the welding depth is large. The welding is firm and the melting is sufficient. It can not only realize thermal conduction welding, but also continuous deep penetration welding, spot welding, butt welding, overlap welding, seal welding, seam welding, etc. Hand-held welding subverts the working mode of the traditional laser welding machine. It has the advantages of simple operation, beautiful welds, fast welding speed, and no consumables. It can weld thin stainless steel plates, iron plates, galvanized plates and other metal materials. Perfectly replaces traditional argon arc welding, stainless steel plate, iron plate, aluminum plate and other metal materials welding.

Features:



1. Overview Advantage

Advantage	Description
Higher Heat Dissipation Efficiency	Suitable for thicker materials due to their ability to absorb and dissipate more heat, especially with higher-power laser equipment.
Reduced Heat Input and Minimal Deformation	Minimizes heat input to the necessary amount, reducing metallographic changes and deformation in the heat-affected zone.
Quality of Laser Beam and Fast Welding Speed	High laser beam quality leading to fast welding speeds and aesthetically pleasing, firm welding seams.
Improvement in Process Defects	Addresses common welding defects like undercut, under-welding, dense pores, and cracks found in traditional welding.
Flexibility and Outdoor Operation	Easy to learn and operate, offers multi-dimensional welding without positional or fixture constraints, suitable for outdoor use.



2.Parameters:

Model No.	U1500	U2000	U3000
Laser Power Supply	1500W(100% Real Power)	2000W(100% Real Power)	3000W(100% Real Power)
Welding Penetration Max.	Carbon steel: 2.8mm Stainless steel: 3.6mm Aluminum: 1.0mm	Carbon steel: 3.6mm Stainless steel: 4.6mm Aluminum: 2.0mm	Carbon steel: 4.8mm Stainless steel: 6.9mm Aluminum: 2.0mm
Operating Model	Continuous / Modulation
Power Adjustment Range	10%-100%
Output Central Wavalength	1080 ±10nm
Cooling Method	Water cooling
Duty Cycle	100%
Welding Line Requirements	<0.5mm
Rated Power	220士 20% V AC,50/60H	220士 20% V AC,50/60H	380士 20% V AC,50/60Hz
Gross Weight	155KG	175KG	195KG
Machine Dimension(L*W*H)	1228*594*1080mm	1228*594*1080mm	1228*594*1080mm





Material	Power Rate	Welding Max. Penetration	Welding Max.Thickness
Carbon Steel	1500W	2.8mm	4.0mm
	2000W	3.6mm	5.0mm
	3000W	4.8mm	8.0mm
Stainless Steel	1500W	3.6mm	4.0mm
	2000W	4.6mm	5.0mm
	3000W	6.9mm	8.0mm
Pure Aluminium	1500W	1.0mm	2.0mm
	2000W	2.0mm	3.0mm
	3000W	2.0mm	6.0mm
Copper	‍1500W	0.2mm	1.0mm
	2000W	0.3mm	1.5mm
	3000W	1.0mm	2.0mm





3.Dimension:

3.Welding Quality:





4.Vedio:







5.Production:

Sheet Metal Processing





Support and Services:

Technical Support and Service for Laser Cutting Machine

We provide professional and reliable technical support and service, allowing you to get the most out of your Laser Cutting Machine. Our team of experts can provide you with prompt, comprehensive and effective solutions for all your questions and concerns.

We offer a range of services, from preventive maintenance to emergency repairs, to keep your Laser Cutting Machine running smoothly and efficiently.

We also provide ongoing technical training and remote support to ensure you stay up to date on the latest developments in the field.

For any questions or assistance, please contact us and our team of experts will be happy to help.



Application:
