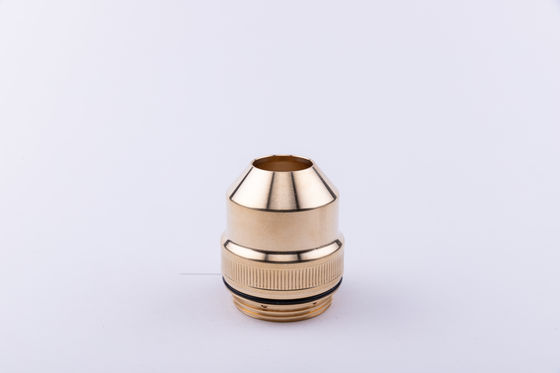

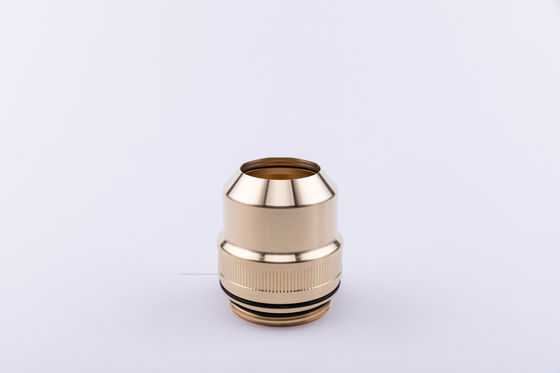

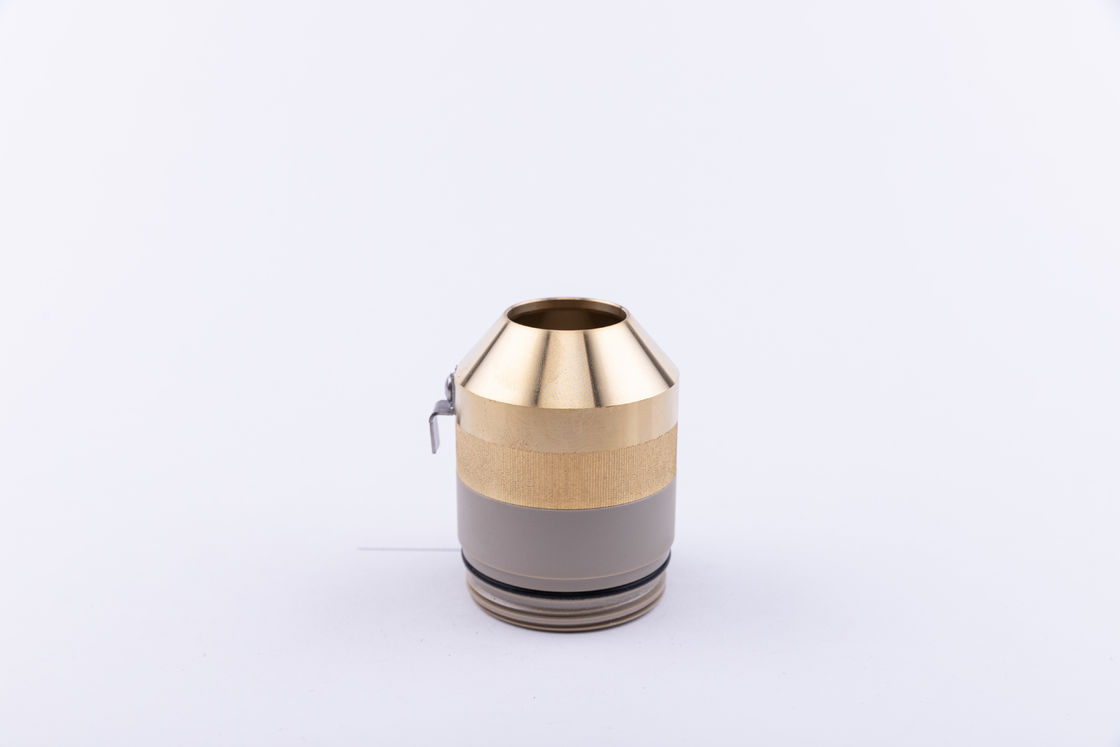

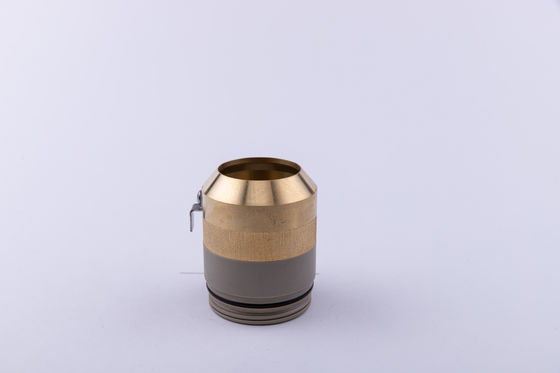

Name:	Shield Cap	System:	Hypertherm HPRXD
Torch:	HPR260/130	Type:	Plasma Cutting
Ampers:	30A-600A	Cut Material:	Mild Steel/Carbon Steel
Cutting Gas:	Oxygen, Nitrogen, Air	Cutting Thick:	0.5-50mm
Consumable:	8hours	Electrode Ma:	Copper Alloy
Nozzle Matel:	Copper Alloy	Power Suppl:	380V/50Hz
Cutting Accu:	+0.1mm
Highlight:	hypertherm shield cap , hypertherm 220189 , hypertherm plasma cutter consumables

SUITABLE FOR HYPERTHERM® HPR260XD® /HPR400XD®
SUITABLE FOR HYPERTHERM® HPR260XD® /HPR400XD®
Ref.Number	Cewoo Number	Tech.Type	Description
220705	C-H100-01	S.T	Quick-Disconnect
220706	C-H100-02	S.T	Torch Body
220340	C-H101-01	S.T	Water Tube 30A-260A
220192	C-H102-01	S.T	Electrode 30A
220180	C-H104-01	S.T	Swirl Ring 30A
220193(DP)	C-H103-01DP	D.P	Dual Nozzle 30A
220754	C-H206-01	S.T	Retaing cap 30A-50A
220194	C-H105-01	S.T	Shield 30A
220747	C-H207-01	S.T	Shield Cap30A-130A
220552	C-H102-02	S.T	Electrode 50A
220553	C-H104-02	S.T	Swirl Ring 50A
220554(DP)	C-H103-02DP	D.P	Dual Nozzle 50A
220555	C-H105-02	S.T	Shield 50A
220187	C-H102-03	S.T	Electrode 80A
220187LF	C-H102-03LF	LongLife	Longlife Electrode 80A
220187S	C-H102-03S	Silver	Silver Electrode 80A
220179	C-H104-03	S.T	Swirl Ring 80A-130A
220756	C-H206-02	S.T	Retaing cap 80A-130A
220188(SP)	C-H103-03SP	S.P	Single Part Nozzle 80A
220188(DP)	C-H103-03DP	D.P	Dual Nozzle 80A
220189	C-H105-03	S.T	Shield 80A
220181	C-H102-04	S.T	Electrode130A
220181LF	C-H102-04LF	LongLife	Longlife Electrode 130A
220181S	C-H102-04S	Silver	Silver Electrode 130A
220182(SP)	C-H103-04SP	S.P	Single Part Nozzle 130A
220182(DP)	C-H103-04DP	D.P	Dual Nozzle 130A
220183	C-H105-04	S.T	Shield 130A
220352	C-H102-05	S.T	Electrode200A
220352LF	C-H102-05LF	LongLife	Longlife Electrode 200A
220352S	C-H102-05S	Silver	Silver Electrode 200A
220353	C-H104-04	S.T	Swirl Ring 200A
220354(SP)	C-H103-05SP	S.P	Single Part Nozzle 200A
220354(DP)	C-H103-05DP	D.P	Dual Nozzle 200A
220757	C-H206-03	S.T	Retaing cap200A
220761	C-H205-01	S.T	Shield 200A
220637	C-H207-02	S.T	Shield Cap200A-400A
220435	C-H102-06	S.T	Electrode260A
220435LF	C-H102-06LF	LongLife	Longlife Electrode 260A
220435S	C-H102-06S	Silver	Silver Electrode 260A
220436	C-H104-05	S.T	Swirl Ring 260A
220439(SP)	C-H103-06SP	S.P	Single Part Nozzle 260A
220439(DP)	C-H103-06DP	D.P	Dual Nozzle 260A
220760	C-H206-04	S.T	Retaing cap260A
220764	C-H205-02	S.T	Shield 260A
220629LF	C-H202-01LF	LongLife	Longlife Electrode 400A
220571	C-H201-01	S.T	Water Tube 400A
220631	C-H204-01	S.T	Swirl Ring 400A
220632	C-H203-01DP	D.P	Dual Nozzle 400A
220635	C-H206-07	S.T	Retaing cap400A l
220636	C-H205-03	S.T	Shield 400A
220700	C-H201-02	S.T	Water Tube Bevel cutting
220802	C-H202-02	S.T	Electrode 80A Bevel
220802LF	C-H202-02LF	LongLife	Longlife Electrode 80A Bevel
220806(DP)	C-H203-02DP	D.P	Dual Nozzle 80A Bevel
220806(SP)	C-H203-02SP	S.P	Single Nozzle 80A Bevel
220845	C-H206-05	S.T	Retaing cap80A Bevel/200A Bevel
220742	C-H205-04	S.T	Shield 80A Bevel/130A Bevel
220649	C-H202-03	S.T	Electrode 130A Bevel
220649LF	C-H202-03LF	LongLife	Longlife Electrode 130A Bevel
220646(DP)	C-H203-03DP	D.P	Dual Nozzle 130A Bevel
220646(SP)	C-H203-03SP	S.P	Single Nozzle 130A Bevel
220740	C-H206-06	S.T	Retaing cap130A Bevel/260A Bevel
220662	C-H202-04	S.T	Electrode 200A Bevel
220662LF	C-H202-04LF	LongLife	Longlife Electrode 200A Bevel
220659(DP)	C-H203-04DP	D.P	Dual Nozzle 200A Bevel
220659(SP)	C-H203-04SP	S.P	Single Nozzle 200A Bevel
220658	C-H205-05	S.T	Shield 200A Bevel
220541	C-H202-05	S.T	Electrode 260A Bevel
220541LF	C-H202-05LF	LongLife	Longlife Electrode 260A Bevel
220542(DP)	C-H203-05DP	D.P	Dual Nozzle 260A Bevel
220542(SP)	C-H203-05SP	S.P	Single Nozzle 260A Bevel
220741	C-H205-06	S.T	Shield 260A Bevel
220308	C-H202-06LF	LongLife	Longlife Electrode 45A SS
220339	C-H202-07LF	LongLife	Longlife Electrode 80A SS
220307	C-H202-08LF	LongLife	Longlife Electrode 130-260ASS
220180	C-H104-01	S.T	Swirl Ring 30A
220179	C-H104-03	S.T	Swirl Ring 80A-130A
220342	C-H204-02	S.T	Swirl Ring 200A SS
220405	C-H204-03	S.T	Swirl Ring 260-400A SS
220201	C-H203-06	S.T	Nozzle 45A SS
220337	C-H203-07	S.T	Nozzle 80A SS
220197	C-H203-08	S.T	Nozzle 130A SS
220343	C-H203-09	S.T	Nozzle 200A SS
220406	C-H203-10	S.T	Nozzle 260A SS
220755	C-H206-07	S.T	Retaining Cap 45A-130A SS
220758	C-H206-08	S.T	Retaining Cap 200-260A SS
220202	C-H205-07	S.T	Shield 45A SS
220338	C-H205-08	S.T	Shield 80A SS
220198	C-H205-09	S.T	Shield 130A SS
220762	C-H205-10	S.T	Shield 200A SS
220763	C-H205-11	S.T	Shield 260A SS
220747	C-H207-01	S.T	Shield Cap30A-130A
220637	C-H207-02	S.T	Shield Cap200A-400A
